Relays

The Relays section is intended for configuring the transmission of object data from the GALAKTIKA system to external services. The transmission is carried out using the selected relay protocol: Wialon IPS, EGTS_O, EGTS_I, Teltonika, Wialon Retranslator. A configured relay can be enabled (active) or disabled (inactive).

The EGTS protocol comes in two variants. They differ in how the receiving service identifies the object:

• EGTS_O — the object is identified by the terminal number (TID) only. Suitable for RNIS.
• EGTS_I — the IMEI (or the ID set in the Override ID column) is sent along with the terminal number. Suitable for Wialon.

If you choose the wrong variant, the service may accept the data without errors but not show it on the object.

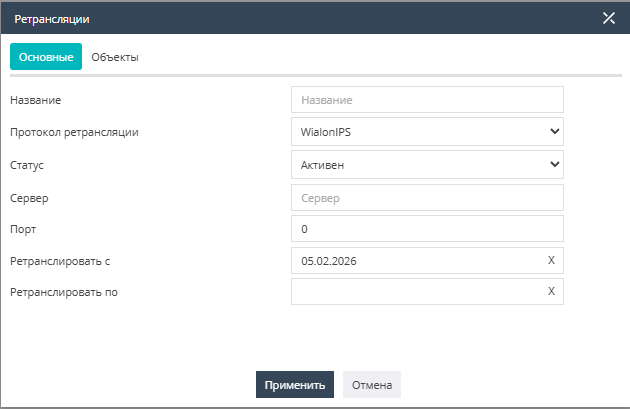

To create a new relay, you need to go to the Add relay interface and fill in the existing fields in the General subsection:

• Relay name
• Relay protocol
• Activity status
• Data-receiving service server
• Data-receiving service port
• The date from which data transmission should start
• The date until which data should be transmitted (if necessary)

In the Objects subsection, you need to select the objects for data transmission.

If you need to replace the ID during data transmission, you need to set it in the corresponding cell in the Override ID column.
